Education

Library Fresh Air Ventilation Systems

Libraries need fresh air for readers and steady humidity for books. ASHRAE 62.1 sets 5 cfm per person plus 0.12 cfm per sq ft, about 1,390 m³/h for 60 readers on 400 m². Archives recommend 45–50% relative humidity for paper, and mould can grow when humidity stays above 65%. InAir supplies ERVs with dehumidification to hold both.

Last updated: · Reviewed by the InAir engineering team

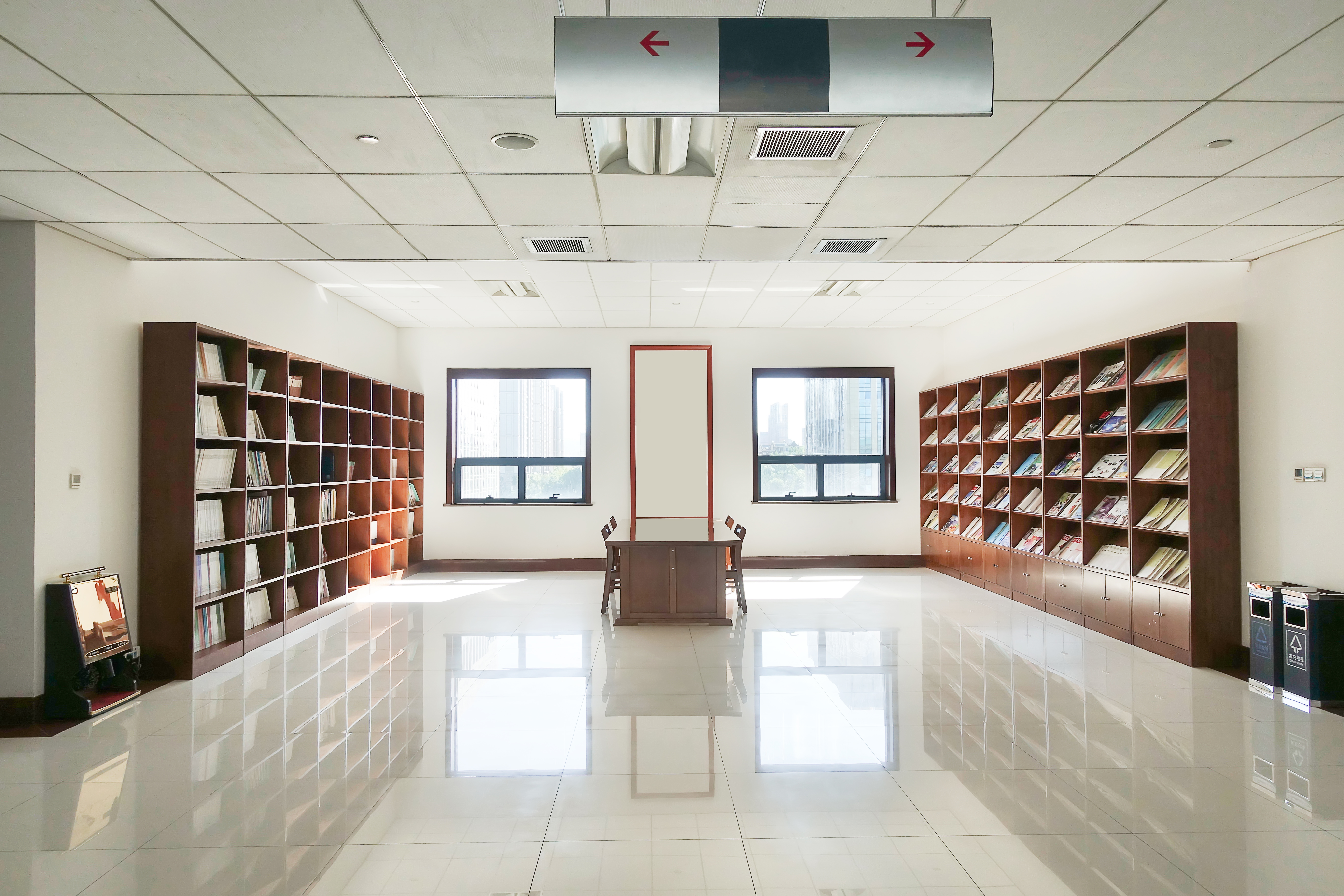

Libraries ventilation by InAir

Key facts

~1,390 m³/hfresh air for 60 readers on 400 m² (ASHRAE 62.1)[1]
45–50% RHrecommended for specialised paper storage[2]
> 65% RHsustained humidity at which mould growth can start[2]

Why libraries need dedicated ventilation in India

Reading rooms are quiet, full and closed

Students and readers sit for hours in closed, air-conditioned rooms. Without fresh air, CO₂ rises through the afternoon, and studies link raised CO₂ to slower, less accurate mental work[3].

Paper needs stable humidity

Temperature and humidity are the main controls in preserving library and archive collections, and wide swings in either cause damage[4]. The National Archives of Australia recommends 45–50% relative humidity for specialised paper storage and notes that mould can grow when humidity stays above 65% for a considerable period[2].

Indian monsoons push humidity far above that

Outdoor air in the monsoon can be close to saturated. Bringing it in untreated raises indoor humidity and risks mould on bindings and shelves. Fresh air has to be dried before it reaches the stacks.

How much fresh air is needed?

ASHRAE 62.1 sets libraries at 5 cfm per person plus 0.12 cfm per sq ft[1].

SpaceASHRAE 62.1 rateFresh air (m³/h)Typical InAir selection
Reading room, 400 m², 60 readers817 cfm1,388 m³/hVentura INA-QRXF-1500-C
Study hall, 200 m², 80 students658 cfm1,118 m³/hVentura INA-QRXF-1300-C
Stack room, 300 m², 5 staff412 cfm700 m³/hRevita INA-MFQR-800 + dehumidifier
Archive / rare books roomHumidity-ledLow, constantWater-coil fresh air dehumidifier

Archive rooms are designed around humidity stability first; fresh air is kept low and constant. Conversion: 1 cfm = 1.699 m³/h.

Recommended InAir system

Full technical data: Revita · Ventura · RHP spec sheets.

How InAir delivers it

  1. Free site survey. An InAir engineer visits, measures the space, notes occupancy and heat sources, and checks routes for ducts and outdoor intakes.
  2. Airflow sizing. Fresh air and exhaust are sized to ASHRAE 62.1 / 62.2 and NBC 2016 Part 8, and checked against a CO₂, humidity or heat-removal target for the space.
  3. Equipment and filter selection. We select units, fans and filters (MERV-13, HEPA-13 or carbon) for the city’s outdoor air and the space’s needs, and share a written proposal.
  4. Installation and commissioning. Our team installs, then measures and balances supply and exhaust airflow at each outlet before handover.
  5. Monitoring and service. Optional sensors track CO₂, PM2.5 and humidity. Filters are changed on a scheduled service plan.

Frequently asked questions

For specialised paper storage, around 45–50% relative humidity with minimal swings. Mould can start when humidity stays above 65%.
ASHRAE 62.1 sets 5 cfm per person plus 0.12 cfm per sq ft: about 1,390 m³/h for 60 readers on 400 m².
Not if it is dried first. InAir fits a fresh air dehumidifier or RHP unit ahead of the stacks.
Yes. Ceiling-mounted and standalone units can be fitted with minimal disruption to the collection.

References

  1. ANSI/ASHRAE Standard 62.1, Ventilation and Acceptable Indoor Air Quality (Table 6-1, Ventilation Rate Procedure). https://www.ashrae.org/technical-resources/bookstore/standards-62-1-62-2
  2. National Archives of Australia, Preserving paper documents and artworks: temperature and humidity. https://www.naa.gov.au/information-management/storing-and-preserving-information/preserving-information/preserving-paper-documents-and-artworks
  3. Allen JG et al. (2016). Associations of cognitive function scores with carbon dioxide, ventilation, and VOC exposures in office workers. Environmental Health Perspectives 124:805–812. https://doi.org/10.1289/ehp.1510037
  4. Northeast Document Conservation Center, Preservation Leaflet 2.1: Temperature, Relative Humidity, Light, and Air Quality. https://www.nedcc.org/free-resources/preservation-leaflets/2.-the-environment/2.1-temperature,-relative-humidity,-light,-and-air-quality-basic-guidelines-for-preservation

Book a free site survey

An InAir engineer will survey your space, size the fresh air and exhaust, and send a written proposal. Available across 15 Indian cities.
